TLU-3/0D
|

TLU-3/0D

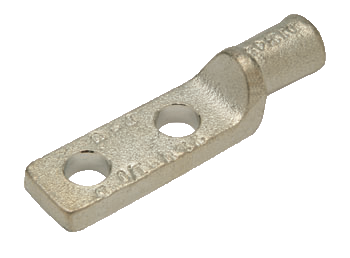

Cast Copper Heavy-Duty Compression Lug - Two Hole Tongue 3/0 AWG

  • Cast out of pure copper alloy for high conductivity
  • Provides excellent mechanical strength
  • Entire connector is electro-tin plated for corrosion resistance
  • Can be installed with existing hydraulic crimping tools
  • Two-hole mounting pad assures maximum secureness
  • For blank tongue, add suffix “-U” to the catalog number
  • Can be installed with the following T&B Tooling:
    • 13642 (12 Ton Head)
    • 21920 (20 Ton Head)
    • 21940 (40 Ton Head)

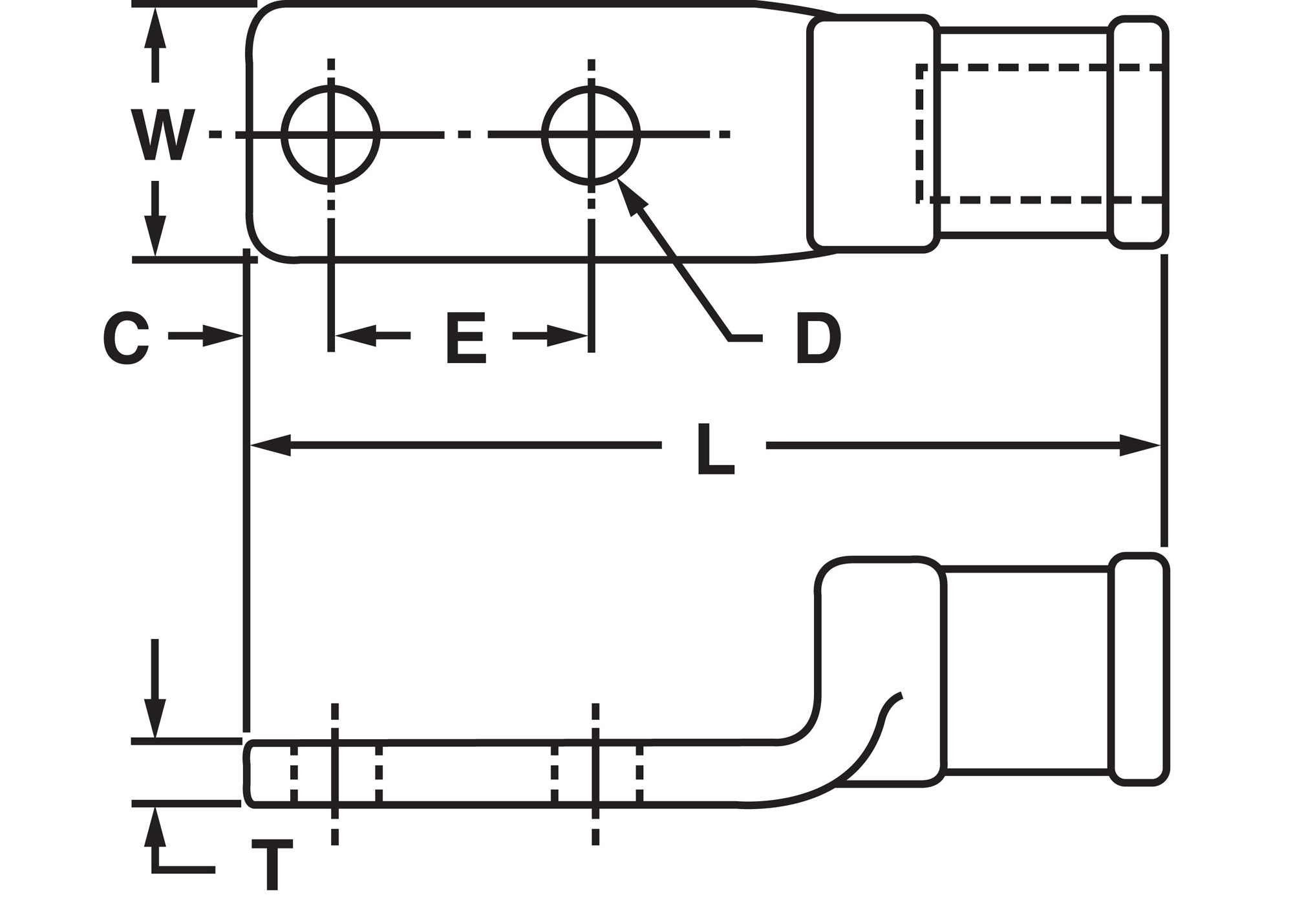

L (in.)4.63
W (in.)1.00
T (in.)0.28
C (in.)0.63
E (in.)1.75
D - Bolt Size1/2"
