PNLC-1000
|

PNLC-1000

Bronze Splicer/ Reducer - 500 kcmil - 1000 kcmil

  • Manufactured from high strength copper alloy for maximum conductivity and corrosion resistance
  • For use when splicing/reducing a wide range of copper conductors
  • Plated steel set screws provide a high strength connection
  • Annular serrations in conductor grooves provide improved mechanical performance
  • Internal cable stop ensures full cable insertion
  • Hex head screws can be furnished by suffixing catalog number with “-HH”
  • For tin plating, suffix catalog number with “-TN”

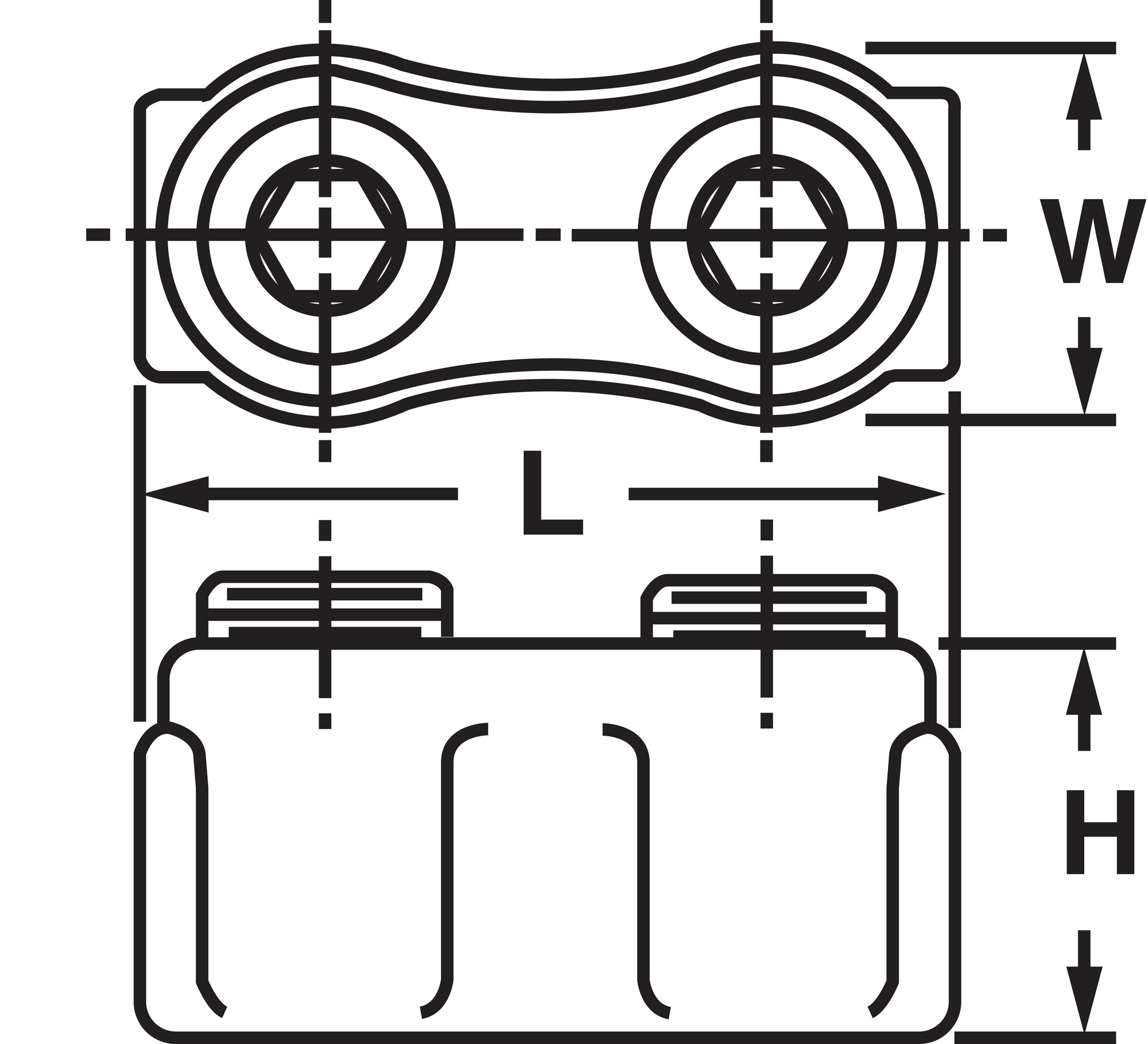

L (in.)3.75
H (in.)2.00
W (in.)1.75
Screw Thread Size1-3/8"-14
Hex Size3/8"
