L2A-800-4
|

L2A-800-4

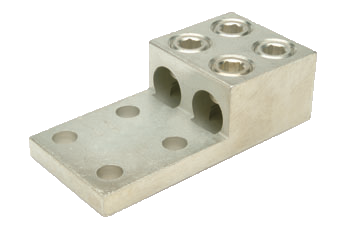

Aluminum Dual Rated Lug for Two Conductors - Four Hole Tongue 300 kcmil - 800 kcmil

  • Manufactured from high strength aluminum alloy extrusion
  • For use with two copper or aluminum conductors
  • Electro-tin plated to ensure minimum contact resistance and protection against corrosion when used with copper wire
  • Four-hole mounting pad allows for maximum surface contact in heavy duty applications
  • Tandem set screws provide superior mechanical performance
  • Rated for 600 V, 90°C applications
  • The use of oxide inhibitor is recommended for all aluminum terminations
L (in.)5.75
W (in.)3.57
H (in.)1.94
T (in.)0.50
B (in.)2.99
C (in.)0.59
D (in.)0.51
E (in.)1.75
F (in.)1.75
Mounting Bolt Size1/2"
Hex Size3/8"
